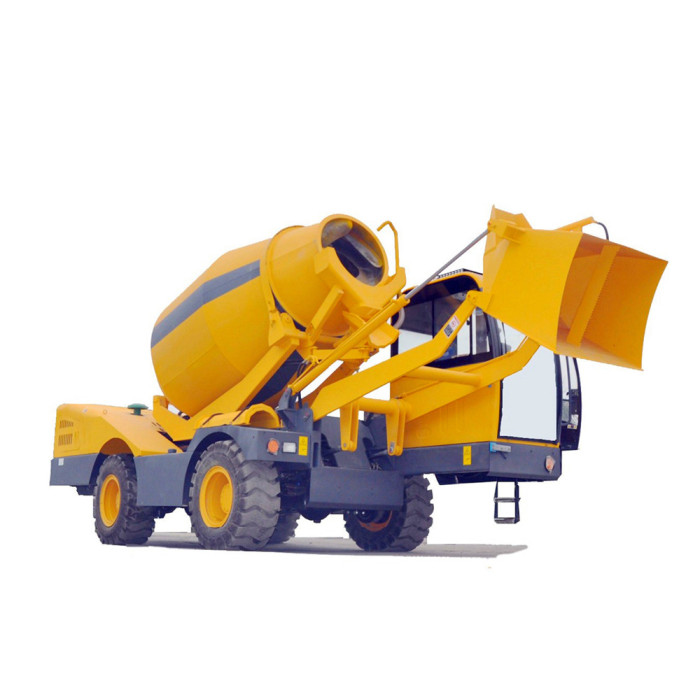

2.0m³ Automatic Self-loading Concrete Mixer Truck
Detail Information
Instruction:

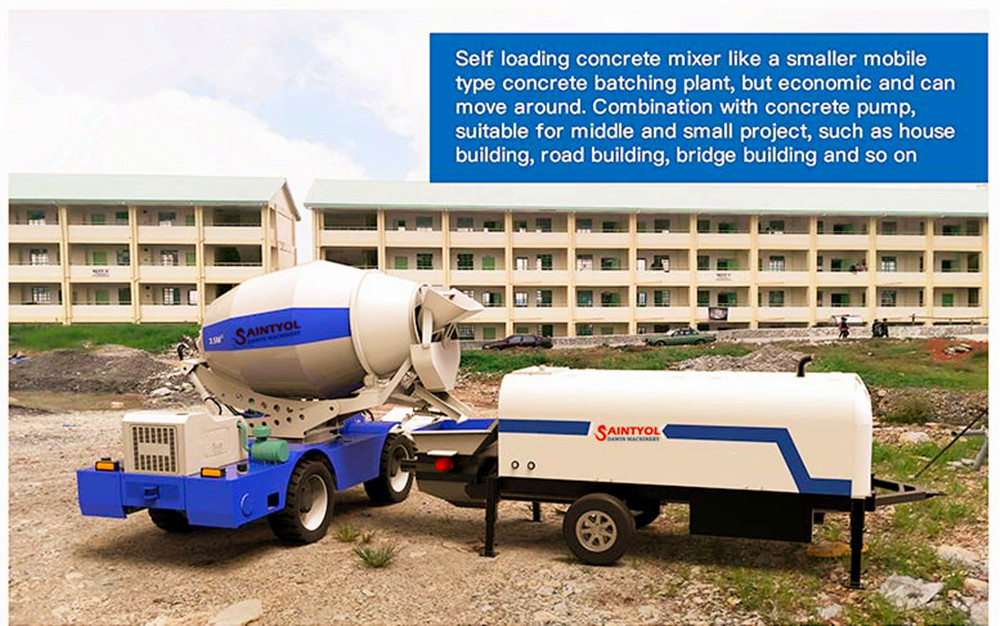

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Features :
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading concrete mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Specifications:
Name | Item | Specification | |
Net | 6200 KG | ||
Transmission | 4 WD | ||
Brake | Air Brake | ||
Chassis | Off-road | ||
Loader bucket | capacity | 0.4m3 | |
Control | Hydraulic | ||
Tilt angle | 20% | ||
Speed | High | 0-30KM/H | |
Low | 0-9KM/H | ||
Mini turning radius | 4.5M/R | ||
Engine | Type | Yunnei 4102 | |
Rated Power/RPM | 76KW/2200RPM | ||
Max.Torque/RPM | 360N.M/1400RPM | ||
Cylinder | 4 | ||
Starter | Electric | ||
Cooling type | water cooling | ||
Maxing Drum | Output capacity | 2.0M3 | |
Bank Angle | 16 ° | ||
Chute | Swing Angle | ≥50° | |
Angle control | Hydraulic | ||
Loader control | Hydraulic 4 way stick | ||
Tyre model | 16/70-20 construction tyre | ||
Electronic parts | Waterproof circuit | ||
Hydraulic oil | France Total brand | ||

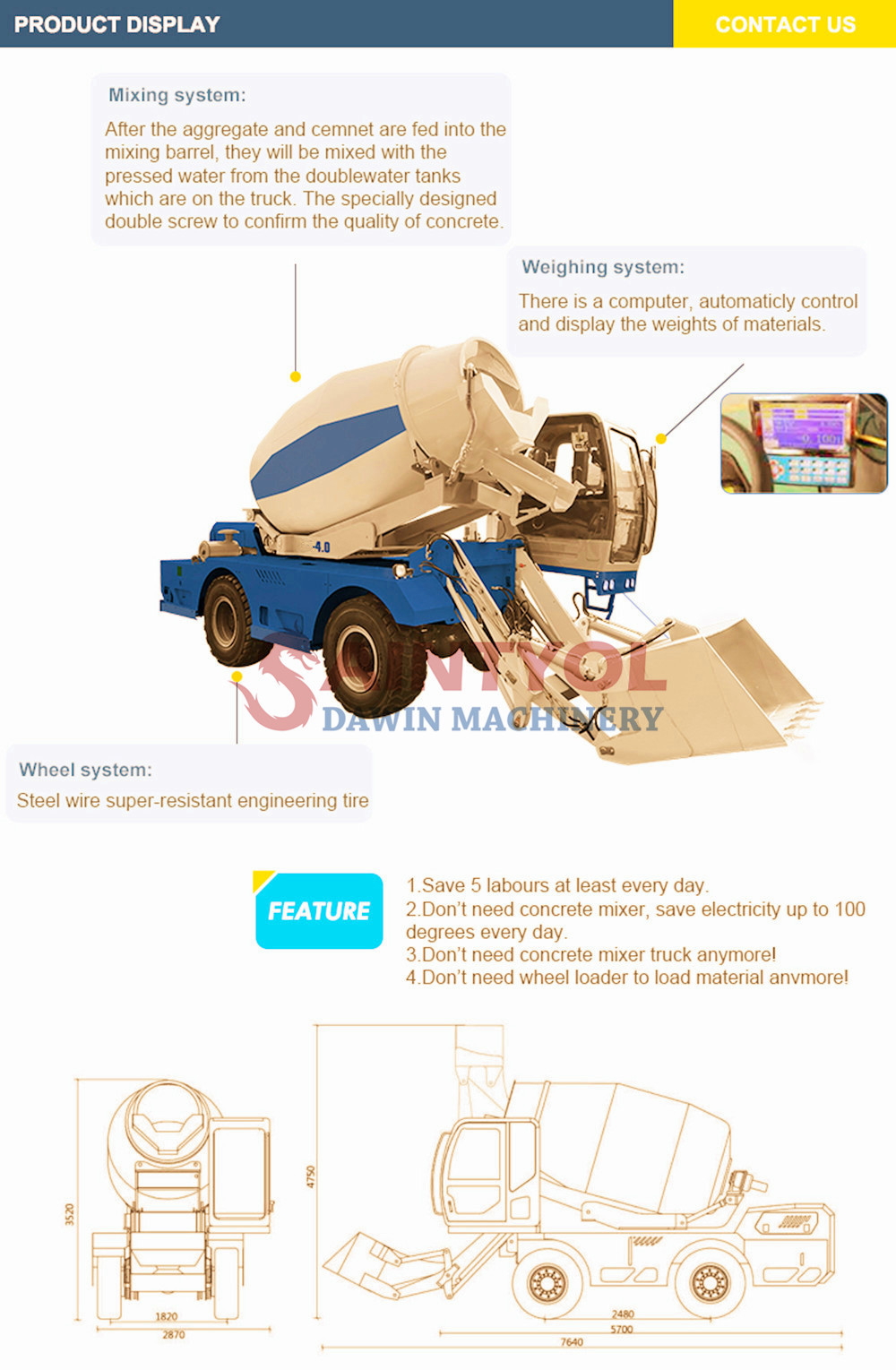

Main Parts:
Efficient hydraulic drive system
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.
Four-dimensional mixing technology
Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.
Unique continuous trace design is used,with residual rate≤0.4%.
Safe and flexible operation system
Longitudinal resistance-free design is used,to provided more flexible manipulation.
Front and rear linkage double-limit structure is used,to provide higher safety.
Convenient water supply system
Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.
Liner water tank structure is used with service life increased by 50%.
