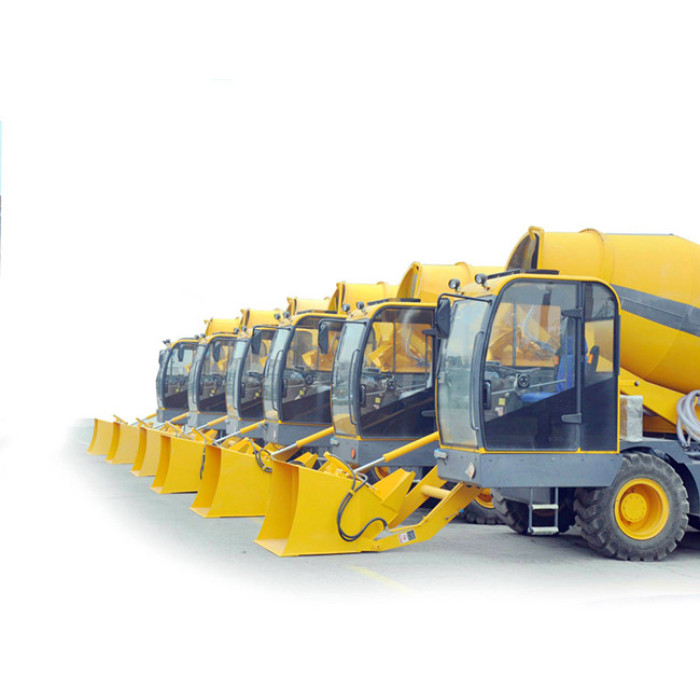

4.2m³ Automatic Self-loading Concrete Mixer Truck

Categories	Self-loading Concrete Mixer
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	HY4.2
Output Capability	4.2m³ Per Tank
Certificates	CE
Tyre	Off Road
Loading Bucket	600L
Engine	Cummins or others
Weighing System	Electrical Auto
Hydraulic Fittings	Rexroth or others
Drum Tank Rotation	270 degree
FOB port	Qingdao
Terms of Payment	L/C, T/T
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

4.2 cubic meter self loading concrete mixer truck

Instruction:

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Features :

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.

2. The self loading concrete mixer for sale has easy operation, high working efficiency, high mixing effect.

3. It has independent water supply system, which can ensure the high quality of concrete.

4. It just need one operator to drive, load, and mix raw material while moving it.

Specifications:

HY4.2	Item	Specification
	Net	9000 KG
	Transmission	Full Hydraulic
		4WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880
	Wheelbase	2250mm
	Loader bucket	capacity	0.6m3
		Control	Hydraulic
	Tilt angle	30%
	Speed	High	0-25KM/H
		Low	0-9KM/H
	Mini turning radius	6.5M/R
	Tyre model	16/70-20
Engine	Type	Yuchai 4108
	Rated Power/RPM	95KW/2200RPM/130HP 2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	4.20M3
	Bank Angle	16 °
	Rotation Angle	17-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:176cm
		Short：40cm
Loader	Weighing model	computer control
		Concrete Standard		C15.C20.C25 C30
	Accuracy	concrete		≤±2%/time
		Relative Error		≤±3%/time
		water		≤±1%/time
		Additive		≤±1%/time
		Admixture		≤±2%/time
Control	One hydraulic 4 way stick
Overall size	750027003380（4760）

Main Parts:

self loading concrete mixer drive system

Efficient hydraulic drive system

As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.

self loading concrete mixer mixing technology

Four-dimensional mixing technology

Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.

Unique continuous trace design is used,with residual rate≤0.4%.

self loading concrete mixer operation system

Safe and flexible operation system

Longitudinal resistance-free design is used,to provided more flexible manipulation.

Front and rear linkage double-limit structure is used,to provide higher safety.

self loading concrete mixer water supply system

Convenient water supply system

Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.

Liner water tank structure is used with service life increased by 50%.

self loading concrete mixer working with trailer concrete pump

self loading concrete mixer models and capability

Packing & Shipping:

self loading concrete mixer package and shipping

Job Site Performance:

Testing Video & Working Video:

Auto Self-Loading Concrete Mixer E-Brochure Download
