62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)

62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)

62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)
62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)62M 6RZ BOOM CONCRETE PUMP TRUCK (ISUZU 8*4 Chassis)
CategoriesTruck Mounted Concrete Pump
BrandSaintyol DAWIN Construction Machinery Manufacturer
Model62X-6RZ
Max. Theoretical Concrete Output170 m³
Max. Theoretical Output Pressure10Mpa
Oil Cylinder Dia.×Strokeφ140×2100
Concrete Cylinder Dia.×Strokeφ260×2100
Placing Boom Structure Type62-6RZ
Max. Placing Height61.1m
Horizontal Placing Radius56m
Max. Aggregate Dimension40mm
Chassis ModelHOWO, ISUZU，SINOTUCK, Benz etc
Drive DirectionLeft or Right in option
FOB portQingdao, Shanghai, Tianjin
Terms of PaymentL/C, T/T
Download
Update TimeDec 21,2024
Contact Now
Favorites
Detail Information
concrete boom pump truck
Instruction:

1. The 62m Pump Truck is OEM for foreign customers, with X Type Retractable Leg two legs, total weight is about 49 tons. In China, we are 8x4 chassis 62m pump truck. The 62m pump truck with 8x4 chassis is reliable after practice in China Job-site, two level front legs are flexible and convenient to use. For large pump truck, our     Saintyol DAWIN brand has our own excellent technology in the pumping system and electrical control system, we recommend you to purchase the whole pumpcrete without chassis. Our pump can match your local chassis. We have our own technology on the boom system and pumping system.


2. The pumping pressure is adjusted step-less, without high and low pressure switching, the max. Outlet pressure is 10MPa, the pumping ability is strong, and no material picking.

3. The boom system has active vibration reduction technology, stable construction.

Specifications:

 Model

62X-6RZ

 Item

 Unit

 Parameter























Pumping

System

Max. Theoretical Concrete Output

m3/h

170

Max. Theoretical Output Pressure

MPa

10

Hopper Capacity

L

600



Feeding Height

mm

1450

Hydraulic System Mode





Open Loop

Distribution Valve Mode





S Valve

Concrete Cylinder Diameter × Stroke

mm

φ260×2100

Hydraulic Oil Cooling





Air Cooling

Max. Aggregate Dimension

mm

40







Placing

Boom

Structure Type



62-6RZ

Max. Placing Height

m

61. 1

Max. Placing Radius

m

56

Slewing Angle



± 360°

Working Range:

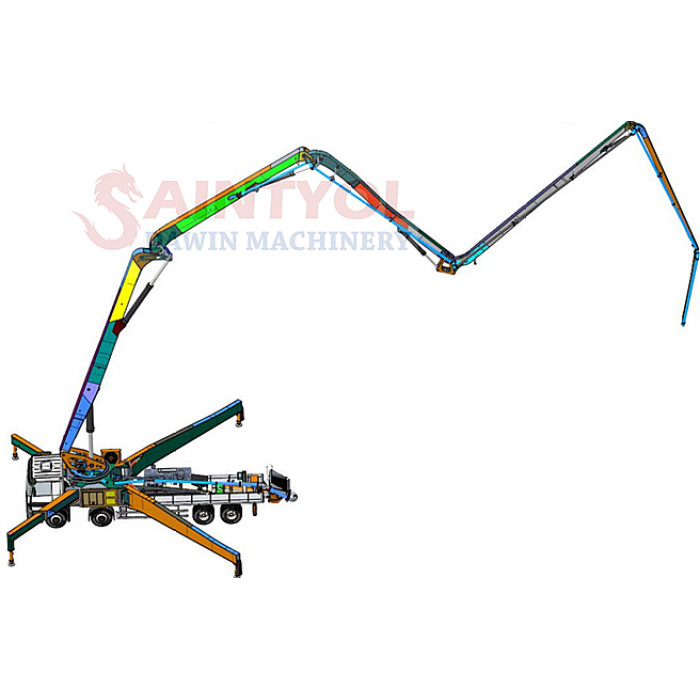

63m concrete boom pump truck working range drawing
Upper Part Drawing :
concrete boom pump truck upper parts drawing

Main Parts:
concrete boom pump truck rubber hose jonts
Hydraulic rubber hose joints
The hydraulic rubber hose joints are products of American Eaton, insuring the safety and no leakage of hydraulic system.
concrete boom pump truck main oil pump
Main oil pump
Main oil pump adopts REXROTH or Japanese KAWASAKI variable plunger pump to insure system stable and reliable, with functions of overpressure and overflow to effectively protect main oil pump and diesel engine.
concrete boom pump truck hopper
Hopper
Latest version whole stamping hopper is new optimization on inner line, suction rate improved by 20%, no sticking materials, easy to clean.
placing boom concrete pump truck pumping pipeline
Pumping Pipeline System
Pumping pipeline adopt composite double wear-resisting materials,wear resistation degree can reach 50,000 cublic meters.(m³)
placing boom concrete pump hydraulic system
Pumping hydraulic system
Overall hydraulic control system and oil pressure signals make operation more simple and reliable,improve the swing cylinder reversing speed and reduce the reversing impact.At the same time,the large oil cylinder reversing moment action could be accelerated and the concrete cylinder would be fully filled, making concrete output continuous and smooth.
placing boom concrete pump jib system
Jib structure system
Jib structure system is based on the finite element analysis, dynamic analysis and test, and the accurate date support.High strength low alloy steel plate,all materials and welding line by 100% non-destructive technology ensure the jib structure reasonable and highly reliable.


placing boom concrete pump truck supporting hydraulic system
Hydraulic system of jib structure and support legs
Electro-hydraulic and manual multiple valves ensure wireless remote control and manual control in case of emergency.
concrete boom pump truck transfer case
Transfer case
We adopt imported transfer case.
Reference Photos:
placing boom concrete pump truck weight test
placing boom concrete pump truck weight test
Feartures:
1.Truck mounted boom concrete pump truck EquipΦ230mm cylinder, large displacement (125m3 / h) pumping system, the material absorption is more than 88%, the number of commutation with the same displacement is low, and the wearing parts life is long;

2.The boom concrete pump truck pumping system adopts electronically controlled commutation. The pumping commutation is quick and accurate, for system impact is small, and the actual pumping efficiency is increased by more than 7% over the conventional hydraulically controlled commutation system.

3.The concrete boom pump truck adopts industrial large pump truck integrated valve, the line is simple, the pressure loss is small, compared to the conventional valve energy saving 17%. Hydraulic systems are not prone to heat.

4.The placing boom concrete pump truck pumping system equipped high and low pressure pumping switching function, can pump large displacement, high speed and high efficiency. When encountering poor materials, high-pressure pumping is not easy to block the pipe.

5.Equipped with full power and energy-saving dual pumping mode, the fuel consumption is lower. The engine speed can be adjusted in conjunction with the pumping volume.

6.Equipped with a dedicated central controller for construction machinery, a large-size high-definition display, and LCD remote control. The performance of the control system is stronger and the operation is more user-friendly.

7.Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be immediately and steadily stopped. The end hose is positioned quickly and accurately.
Customized Boom Pump Truck Upper Part:
