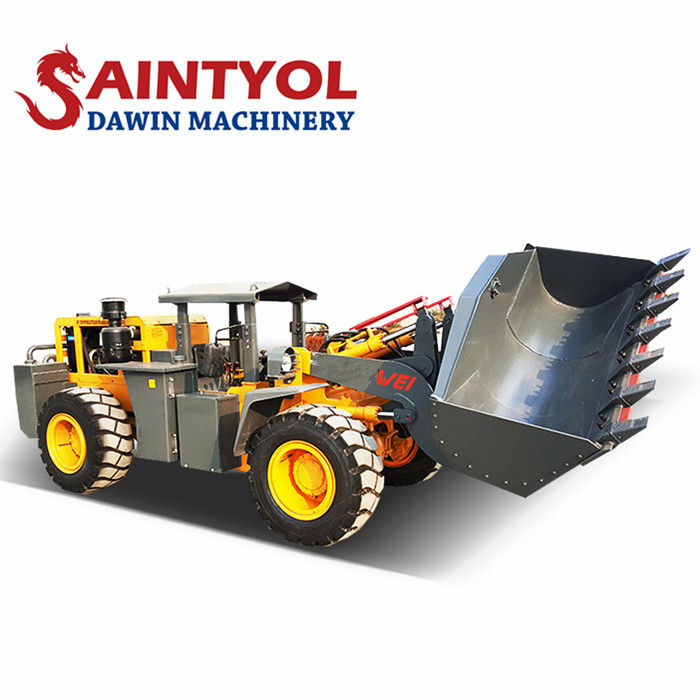

ZL928 2 Ton Low Profile Side Dumping Underground Wheel Loader

Categories	Wheel Loaders
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	ZL928
bucket capacity(m3)	1m3
operating weight(kg)	5300
dumping height(mm)	1700
rated power(kw)	85KW
Type	In-line arrangement, water cooling, four-stroke
Wheel base (mm)	2450mm
Minimum ground clearance	400mm
FOB port	Qingdao
Terms of Payment	L/C, T/T
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

side dumping high quality underground wheel loader

Instruction:

Saintyol DAWIN Machinery underground loader is integrated, and the action is more flexible. The loader is equipped world famous brand driving axle, it has the characteristics of strong climbing ability, and suitable for geography in the underground Mine and Tunnel.

With a High-powered diesel engines, Saintyol DAWIN Machinery Under ground wheel loader can load more capacity.

Optional:Joystick control;Wheel protection chains;Smooth anti puncture narrow tire.

Side dump bucket;Breaking hammer;Narrow bucket without teeth.

Main specification and characters of ZL928 underground wheel loader

1. The ultra-low chassis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines.

2.The large steering angle makes it suitable for flexible operation in narrow mine tunnels

3.Big light more safe.

4. Power shift gear-box, good reliability easy to maintain

Pictures:

Main Features:

Main specification and characters of ZL928 underground wheel loader

1. The ultra-low chassis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines.

2.The large steering angle makes it suitable for flexible operation in narrow mine tunnels

3.Big light more safe.

4. Power shift gear-box, good reliability easy to maintain

5. Large capacity battery. continuous lighting work for 4 hours.

6. Higher efficiency. loading withdraw coal up to 120 Cubic meter in one hour.

7. Side seat design draw on the experience of Scooptram side seat.greatly improved the front and rear visual range.

8. CUMMINS 4BTA3.9-C80 60KW 4 cylinders engine.china made YTO LR4A3Z-22 70KW optional.

9. Integrated torque converter transmission.The smaller and more compact structure, small occupied space.

10. Specifically tailored for the mine operation counter-shaft power-shift gearbox, YJ280 torque converter.

11. Air over hydraulic break system, caliper break system.Wet brake axle available according to requirement..

12. Over load protection system.Disc brake shield,All LED light.Alarm lamp excavator teeth.

13.New design layout of the Hood.Increase counterweight in the front.

14.Optional:Joystick control;Wheel protection chains;Smooth anti puncture narrow tire.

Side dump bucket;Breaking hammer;Narrow bucket without teeth.

Specifications:

Performance	Rated load	2000kg
	Overall weight	5300kg
	Rated bucket capacity	1m³
	Maximum tractive force	90KN
	Maximum breakout force	≥72KN
	Maximum grade ability	30℃
	Maximum dump height	1700mm
	Maximum dump reach	1400m
	Overall dimension (L×W×H)	5540×1700×1890mm
	Minimum turning radius	3400mm
Engine	Model	YTO4A2Z-G93Q-1
	Type	In-line arrangement, water cooling, four-stroke
	No. of cylinder-bore/stroke	4-102×115mm
	Rated power	85kw--2400r/min
	Maximum torque	310N.m
	Min fuel-consume ratio	≤223g/kw.h
Transmission system	Torque converter	YJ280
	Gearbox mode	Power shift normally engaged straight gear
	Gear shift	2 forward shift 2reverse shift
	Maximum speed	30km/h
Drive axles	Main reducing spiral	bevel gear grade 1reduction
	Decelerating mode	planetary reduction,grade 1
	Wheel base (mm)	2450mm
	Wheel tread	1590mm
	Minimum ground clearance	400mm
hydraulic system	System working pressure	16MPa
	bucket lifting time	≤3.25s
	bucket falling time	≤2.3s
	total time for a signle working cycle	≤6.5
	Function of leveling automatically	yes
Brake system	Service brake	air over hydraulic disc brake on 4 wheels
Brake system	Parking brake	manual parking brake
Tyre	Type specification	15/70-18 or 1000-20
	Front tyre pressure	0.4Mpa
	Rear tyre pressure	0.35Mpa
optional	protection chain
	side unloading
	three way catalytic converter

Main Parts:

side dumping wheel loader for underground

Packing & Shipping:

wheel loader package and fitting container

Testing Video:
