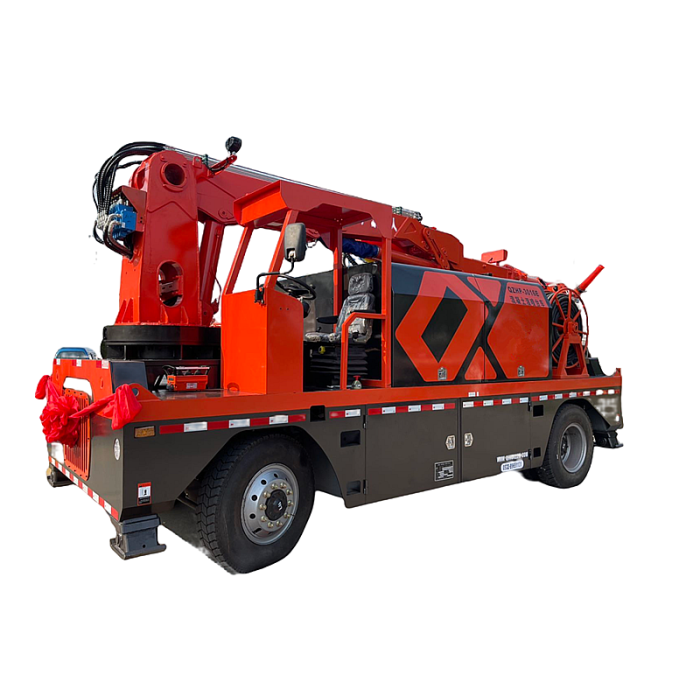

30m3/hr Truck Mounted Wet Concrete Robot Spraying Machine, Shotcrete Machine

Categories	Concrete Spraying Machines
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	QZHP-3016B
Max. theoretic concrete spray volume	30 m³/h
Max. theoretic delivery pressure	8 Mpa
Main System Hydraulic Oil Pressure	32 Mpa
Engine	82 KW
Max Driving Speed	17Km/hr
Max. stone diameter	≤20 When spray
Delivery Cylinder Diameter	Φ140mm
Spraying Height	16m
Spraying Width	27m
FOB port	Qingdao
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

wet concrete spraying machine robot shotcrete pump truck

Instruction:

QZHP-3016B truck mounted concrete wet spray machine trolley is the most compact and flexible engineering chassis self-propelled truck mounted wet shotcrete machine trolley manipulator in Chinese market. It has many advantages such as compact structure, reasonable layout, powerful function, beautiful appearance, perfect performance, flexible boom, wide operating range and high reliability and so on.

Chassis:

The wet concrete spraying truck cab is centered, the wheelbase is only 4 meters. The front axle has a swinging suspension. It has good driving performance with wide tires. The approach angle and departure angle can reach 25°, and the ground clearance is up to 0.4 meters. The whole vehicle is powered by Weichai Deutz 82KW diesel engine. The walking system adopts hydrostatic drive system. The steering system adopts multi-wheel steering control system, which has various steering modes, such as front wheel steering, four-wheel steering, crab walking steering and so on. The vehicle can be flexibly turned and driven in a small space.

Features:

Boom:

The shotcrete pump boom adopts a folding + swivel + telescopic structure. The boom manipulator has seven-axis freedom. It can perform precise head-pointing spraying and Th-like brushing spraying in all directions. After fully retracted and then rotated, the boom slewing radius is only 1.8m, which enables the boom to perform 360° unobstructed rotation in a small space. The maximum front spraying distance can reach 8m when full extension, the maximum spraying height can reach 16m, and the maximum spraying width can be up to 27m.

As length 5m, width 1.85m, height 2.6m concrete wet spray trolley, it can meet 3M×3M - 12M × 8M (W×H) medium and small section tunnels, roadways, slopes, culverts, mines and other concrete spray anchor support operations, the vehicle has some features such as flexibility, fast concrete spraying, low rebound, simple operation, labor saving and so on. The equipment is a flexible, reliable and cost-effective concrete wet spray manipulator.

Areas of application:

The SAINTYOL DAWIN Machinery wet concrete shotcrete pump are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.

·Fine stone concrete conveying

·Floor heating construction

·Tunnel and underground construction

·Mortar conveying

·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying

QZHP-2016B wet concrete shotcrete pumpare applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.

QZHP-3016B Specifications:

Model			QZHP-3016B
Item		Unit	QZHP-3016B
Whole Machine Parameter	Boom Structure Mode		Big & Small Arm Pitch, Small Arm Telescopic
	Spraying Height	m	16
	Spraying Width	m	27
	Big Arm Pitch Angle	°	0-63°
	Small Arm Pitch Angle	°	+5°-115°
	Boom Slewing Angle	°	0-330°
	Nozzle Axial Rotation Angle	°	360°
	Nozzle Vertical Axial Pendulum Angle	°	240°
	Nozzle Swing Angle	°	±4°
	Front Leg Span	m	2.1～3.1 (Variable Distance Leg)
	Rear Leg Span	m	2.1
	Front and Rear Leg Span	mm	5900
System Parameter	Main Drive Mode		Electric Motor
	Vice Drive Mode		Diesel Engine
	Working Power System		Dual Power System
	Electric Motor Rated Power	kw	55
	Working Voltage	v	380
	Concrete Displacement	m³/h	30
	Pumping Outlet Pressure	Mpa	08
	Inner Diameter of Concrete Cylinder	mm	Φ160
	Concrete Delivery Cylinder Stroke	mm	1000
	Pumping Oil Cylinder: Cylinder x Rod x Stroke	mm	Φ90xΦ63x1000
	Concrete Outlet Diameter	mm	φ125
	Concrete Delivery Pipe Diameter	mm	φ80
	Nozzle Mouth Diameter	mm	Φ50
	Air Compressor Parameter (Option)		12 m³/min 0.8Mpa
Chassis Parameter	Chassis Model		Full-drive All-steering high-strength chassis
	Wheelbase	mm	4150
	Diesel Engine Model		WP4G110
	Engine Max. Power	kW	82
	Gearbox Gear		2
	Max. Speed	km/h	17
	Climbing Ability	%	40
	Fuel Tank Volume	L	100
	Emission Standards		EURO IV
	Dimension (L x W x H)	mm	7200x2350x3250

QZHP-3016B Air Compressor Specifications

Item	Data
Model No.	BK75-8G
Motor Rate Power	75KW
Output Capability	13m³/min
Gaseous Medium	Air
Rate Pressure	0.8 Mpa
Cooling Mode	Forced Air Cooling
Drive Mode	Direct Drive
Working Temperature	Environment Temperature +10℃
Electrical Control Mode	Microcomputer Control System
Motor Start Mode	Y-△ start
Suction Temperature	0-46℃
Environment Temperature	0-46℃
Suction Pressure	Natural Air 1.033kg/cm2
Motor Rotational Speed	2895r/min
IP Protection Class	IP23
Insulation Class	F
Motor Operating Coefficient	1.15
Power Source	380V-50HZ-3 Ph
Max. Relative Humidity	95%
Exhaust Outlet	G2”
Overall Dimension	180011901710
Weight	1200 Kg
Mains Frequency	50 Hz

QZHP-3016B Chemical Pump Specifications

吸入/吐出口 Inhalation/Discharging Opening	1” Flange
电机功率 Motor Power	1.1KW
流量 Flow	0.3L/Rpm
最大扬程 Max. Pumping Head	160 m
最大出口压力 Max. Outlet Pressure	16 Bar
润滑油用量 Lubricating Oil Quantity	2L
最高流体温度Max. Liquid Temperature	80℃
软管材质 Hose Material	Chlorosulfonated Polyethylene Rubber（CSM）,Food Grade Hose（F-NBR）,Natural Rubber（NR）Nirile Rubber（NBR）,EPDM

Main Parts:

Swing Arm

the boom can swing ± 45 °. can increase the flexibility of the jet mechanism to improve the single sprayable area, not only the spray surface is more smooth, beautiful, but also reduce the turntable rotation times, increase the stability of the boom

Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins

Diesel engine adopts Tianjin LOVOL or Yuchai or Weichai or Cummins as custom request, which has low energy consumption and high efficiency

Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.

Main Oil Pump

Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.

Cordless Remote Control

Remote control adopts domestic well-known brands, remote control distance, strong signal, no dropped calls, serial number phenomenon.The electrical components are all made by international famous brands such as Schneider, Siemens.

Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability

Hydraulic pipe joints

Hose joints: American Eaton; Pipeline: Original from Italy.

A set of these supported by Eaton.

S Valve

Brand: joint venture brand

Original: Germany

S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.

Photos :

wet concrete spraying machine robot shotcrete pump

concrete robot spraying machine shotcrete pump

mobile wet concrete spraying machine shotcrete pump robot

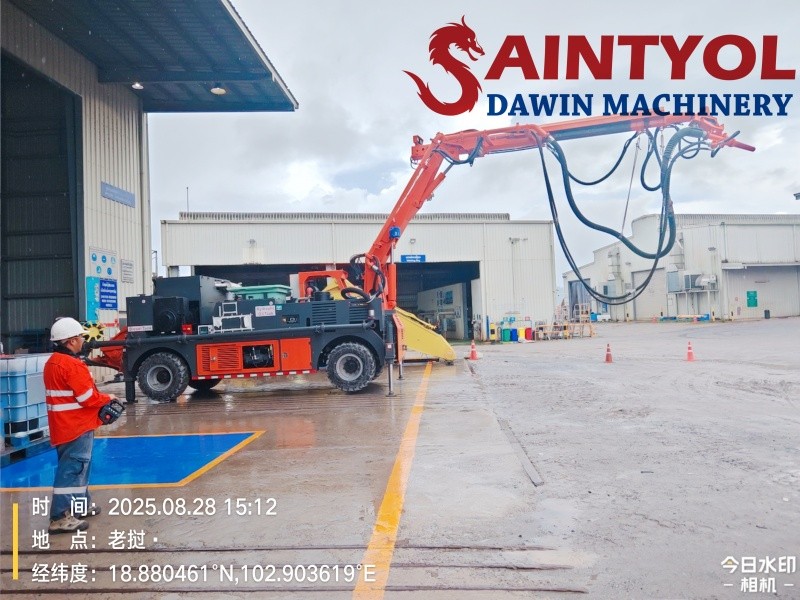

Job Site Performance:

wet concrete shotcrete pump spraying machine

The Real Feedback From Client:

Testing Video:
