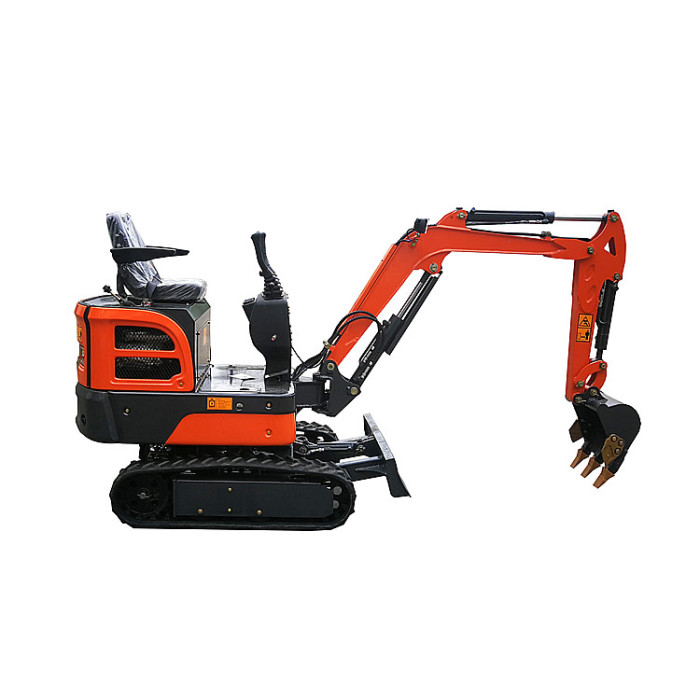

1.2 ton SD13D Mini Crawler Excavator

Categories	Crawler Excavator
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	SD13D
Hydraulic Pump Brand	shimadu
After Warranty Service	Video technical support, Online support
Track Type	Rubber Track
Engine Power	10.5KW
Engine Brand	KOOP or Kubota
FOB port	Qingdao China
Terms of Payment	L/C, T/T
Update Time	Feb 22,2025

Contact Now

Favorites

Detail Information

SD13D MINI CRAWLER EXCAVATOR E-BROCHURE DOWNLOAD

SD13D Mini Tailess Crawler Excavator

SD13D IS A POWERFUL MINI EXCAVATOT.ITS WEIGHT IS 1200KG,ITS WIDTH IS ONLY 925MM,ITS HEIGHT IS 1000MM (NOT INCLUDING ROOF).BUT IT IS A REAL EXCAVATOR,NOT KIDS TOY!IT IS MADE UNDER THE STANDARD OF THE EXCAVATORS.IT CAN DO ALL THE GARDEN WORKS WITH OPTIONAL ATTACHMENTS.

SD13D IS A NEW MODEL,IT IS THE UPGRADE MODEL OF SD12D. THERE IS A-OPEN-HOOD, EASY FOR DAILY CHECK AND REPAIR.THERE ARE DOUBLE FUEL FILTERS TO REDUCE THR REFRACTION OF THE ENGINE.YANMAR ENGINE IS OPTIONAL ,WITH BOOM SWING.

THIS EXCAVATOR IS WIDELY USED IN THE CONSTRUCTION OF SMALL SPACES SUCH AS VEGETABLE GREENHOUSES, ORCHARD NURSERIES, FARMLAND LEVELING, AND DIGGING DITCHES. IT IS THE PREFERRED TOOL TO REPLACE LABORS.

THIS SD13D SMALL EXCAVATOR WEIGHS ABOUT 1013/1035KG, RELATIVELY SMALL AND FLEXIBLE.

SD13D Outline Dimension

SD13D Main Features

1. SD13D 1 ton mini crawler excavator is a hot model produced by our factory!

2. Different from other 1-ton models, this excavator has the only design and patent in the entire network!

3. More than 10 details including solid cast iron counterweight, reinforced under frame and large and small arms have significantly improved the grade of the whole machine, and the work efficiency has increased by more than 20% compared with the old SD12S! The service life is 1~2 years longer than the old SD12S.

4. The fashionable appearance also makes the exterior of the machine burst, and has won a good reputation among customers in Australia, Europe and Asia.

5. Only need 100 dollars to upgrade the engine of KOOP Euro 5 emission standard.

6. Reinforced Boom & Arm: To improve the stability and durability;

SD13D Excavator Main Parts

Excavator Services

SD13D Crawler Excavator Specifications

SD13D hydraulic excavator size parameters
Code item	Code size
Total length	2780mm
Total height	2150mm
Overall width	930mm
Track width	180mm
Platform turning radius	883mm
Track length	1195mm
Wheelbase	845mm
Ground clearance	150mm
Total boom height	1107mm
Platform width	800mm
Platform height from the ground	430mm
SD13D hydraulic excavator operating range
Code item	Code size
Maximum digging height	2637mm, （2930nmi使用推土板）
Maximum unloading height	2170mm
Maximum vertical digging depth	1336nnn, ( 1552nm使用推土板)
Maximum digging radius	3072mm

Maximum ground level digging distance	3300mm
Digging radius of maximum digging height	2200mm
Minimum radius of gyration	1425mm
The maximum depth of the bulldozing board from the ground	170mm
The maximum height of the bulldozing board from the ground	185mm
SD13D hydraulic excavator performance parameters
Project name	SD13D hydraulic excavator performance parameters
Engine model	KOOP 192F (air-cooled diesel engine)Kubota, D722-EF11 crude oil engine)
Power	7.6kw/3000rpm;10.2kw/2500rpm
Work pressure	16 MPAa
Maximum digging force of bucket	6.5 KN
Gradeability	25°
Ground pressure	35Kpa
Walking speed	2. Ikm/h
Main pump flow	21.6 (L/Min)/25 (L/Min)
Platform rotation speed	13rpm/Min
Bucket capacity	0.025 m³
Boom swing angle	左 42。，右 62。
Overall quality	1300kg

Excavator Attachments Options:

Job Sites Performance

Buyers Feedback:
