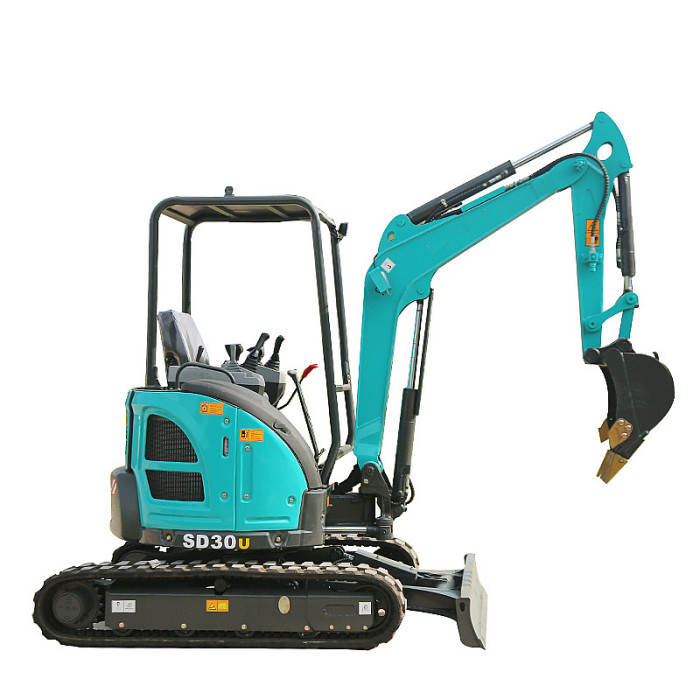

3 ton SD30U Tailess Mini Crawler Excavator

Categories	Crawler Excavator
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	SD30U
Hydraulic Pump Brand	TAIFENG
After Warranty Service	Video technical support, Online support
Engine Brand	YANMAR PERKINS
Engine Power	15.2kw
Moving Type	Crawler Excavator
FOB port	Qingdao China
Terms of Payment	L/C, T/T
Update Time	Feb 22,2025

Contact Now

Favorites

Detail Information

SD30U 3 TON TAILESS CRAWLER EXCAVATOR E-BROCHURE DOWNLOAD

SD30U 3 Ton Tailess Crawler Excavator

The new SD30U zero tail crawler excavator is an upgraded version of the old one, with a more beautiful appearance, superior performance and higher cost performance!

SD30U can choose a closed operating room in the zero-tail excavator series, PERKINS or YANMAR engines, and can upgrade EURO 5&EPA emissions. With its outstanding appearance and stable performance, it won the recognition of the majority of users as soon as it went on the market.

This 30U small excavator is an efficiency type model, the system is mature and stable, and the leather is resistant to construction. It is widely used in orchard nursery, landscaping, mountain reclamation, farmland reconstruction, indoor demolition and other operations.

Mini excavators can do an amazing job at minimizing some of the more time consuming and labor intensive aspects of residential and light commercial projects.

Whereas a company might employ a human labor force to dig a trench for a wall footing, a mini or micro excavator can typically accomplish the job in a fraction of the time, and with less risk for injury and minimal exertion. Looking to break up concrete?

A mini Excavator with a hammer attachment can literally save hours of hard labor and accomplish the job with ease.

SD30U Outline Dimension

SD30U Excavator Photos:

SD30U Main Features

New design of appearance

It's made of die-formed covering parts by stamping, with beautiful appearance and high grade

Tailless models, small radius of rotation, more flexible

Enhanced bulldozer to improve efficiency.

Lengthened large arm, digging deep, far enough, lift high, the general loading requirements can be met.

Open hood

(make daily routine inspection and maintenance work faster and more efficient)

Design of reinforced boom, arm, bucket and chassis

Improve structure, disperse stress, improve stability and durability of structure

Assembly of environmentally friendly engines.

Fuel saving, silent, green emission and strong power of the engine, to mee the T3 emission.

Can be matched with a variety of front-end furniture, suitable for a variety of different

working conditions.

SD30U Excavator Main Parts

Excavator Services

SD30U Crawler Excavator Specifications

Engine					Travel System
Model		Perkins 403D-11/403J-11 EPA			Travel motors					LTM03CJ Plunger double speed
Type		Water cooling, natural inhalation			Support roller quantities					2×3
					Carrier roller quantities					2×1
No. of cylinder		3			Travel shoes					No
Bore and stroke		80x84(mm)			Travel speed					High speed ： 4.3km/h, Low speed：2.3km/h,
Displacement		1.267L			Drawbar pulling force					14.2kN
Power output		15.2kw/2200rpm			Gradeability					58%(300)
Max. torque		63-67.3N.m/1800rpm			Track shoes thickness					Rubber track 65mm， Steel track：72mm
Hydraulic System					Cab & Electrical System
Pump		TAIFENG Plunger pump			Cab			Sunroof
Type		Load sensitive
Max. discharge flow		62 (L/min)
Max. discharge pressure
Boom, arm and bucket		21 MPa			Voltage				12V
Travel circuit		12 V			Batteries				1X12V
Swing circuit		12V			Battery capacity				45Ah
Control circuit		12V			Outer diameter, inner diameter, piston rod diameter
Pilot control pump		4 MPA			Boom cylinder				Φ90xΦ75xΦ40*S455-L785
Main control valves		21 Mpa			Arm cylinder				Φ85xΦ70xΦ40*S492-L765
Oil cooler		Air cooled type			Bucket cylinder				Φ75xΦ50xΦ35*S426-L670
Swing System					Refilling Capacity & lubrication
Swing motor		NACHI PCR-2B-10A-P-8486A			Fuel tank				32L
Swing motor type		Hydraulic driven gear rotary motor			Cooling system				9L
Brake		No			Engine oil				3.4-4.4L
Swing speed		13.5 r/min			Hydraulic oil tank				39.5L
Bucket
Type					Backhoe bucket
Bucket capacity					0.075m3 (SAE)
Bucket Capacity scope					0.030-0.1m3
Number of bucket teeth					4
Bucket width					460 mm
Working ranges
Boom length			2150mm
A	Max. digging height		3865mm
B	Max. dumping height		2760mm
C	Max. digging depth		2560mm
D	Max. vertical digging depth		2440mm
E	Max. digging distance		4375mm
F	Max. digging radius at ground level		4275mm
Digging Force
Arm length			1388mm
A	Bucket digging force		18.6 KN
B	Arm digging force		13.5 KN
Overall Dimensions
A	Overall length		4050mm			G	Tail swing radius				710mm
B	Overall width		1540mm			H	Track grounding length				1530mm
C	Overall height(to top of boom)		1380mm			I	Track length				1895mm
D	Overall height(to top of cab)		2360mm			J	Track gauge				1510mm
E	Counter weight ground clearance		485mm			K	Track Shoe width				250mm
F	Min. Ground clearance		255mm			L	Revolving frame width				1350mm
Operating weight includes basic machine
Operating weight				2870kg
Ground pressure				26.7 KPa
