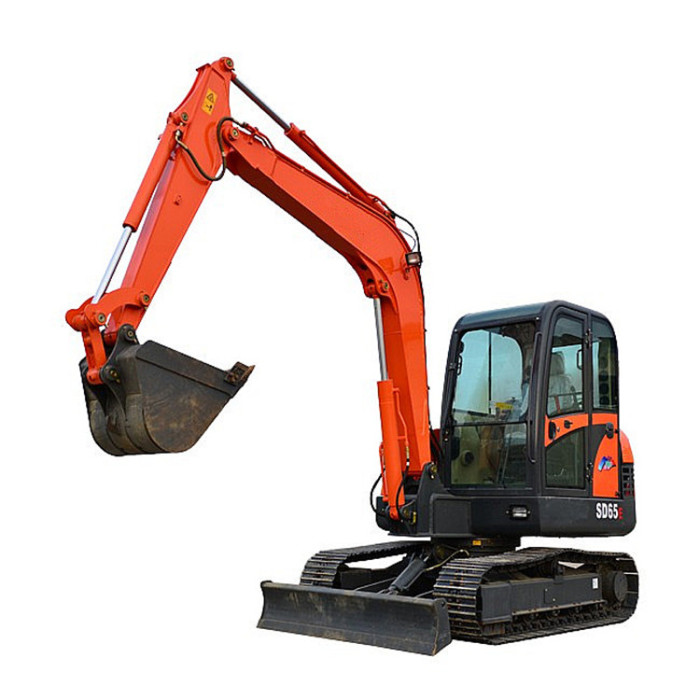

6 ton SD65E Tailess Crawler Excavator

Categories	Crawler Excavator
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	SD65E
Hydraulic Pump Brand	DOOSAN HUADE
After Warranty Service	Video technical support, Online support
Engine Brand	KOOP KUBOTA
Engine Power	37kw
Moving Type	Crawler Excavator
FOB port	Qingdao China
Terms of Payment	L/C, T/T
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

SD65E 6 TON TAILESS CRAWLER EXCAVATOR E-BROCHURE DOWNLOAD

SD65E 6 Ton Tailess Crawler Excavator

SD65E is moderate in size, fully imported configuration, and cost-effective. These are the advantages of SD65E. It matches air-conditioning and luxurious operating chambers, taking into account comfort and efficiency, and is an ideal choice for various projects.

A:Brand engine, powerful horsepower, energy efficient

B:Convenient operation, compact size, flexible movement, adapt to various working environments.

C:Sino-US joint venture hydraulic components, stable performance and long service life.

D:Multi-purpose machine, excavation, crushing, bulldozing, drilling, grabbing.

New design of appearance

It's made of die-formed covering parts by stamping, with beautiful appearance and high grade.

Assembly of environmentally friendly engines Fuel saving, silent, green emission and strong power of the engine, meet the T3 emission standard.

Optimize the reinforced chassis to increase the stability of the lower body

Walking motor, increase I speed torque, lift. High II speed walking speed, greatly improved. Increase productivity

Comfortable cab: brand seat, the cab conforms to ergonomics, which can alleviate the fatigue of long-term operation.

Open machine cover, convenient late

maintenance and repair

South Korean main pump, large displacement, high power, low fuel consumption, the overall performance and engine power match.

Can be matched with a variety of front-end furniture, suitable for a variety of different

working conditions.

SD65E Outline Dimension

SD65E Excavator Photos:

SD65E Main Features

1) Japan Brand engine:YANMAR, powerful horsepower, energy efficient,Low noise.

2) Convenient operation, compact size, flexible movement, adapt to various working environments.

3) Multi-purpose machine, excavation, crushing, bulldozing, drilling, grabbing.

4)Spacious cab is quiet, spacious and comfortable, eye shot is open

SD13D Excavator Main Parts

Spacious cab

Spacious cab is quiet, spacious and comfortable, eye shot is open

Bucket

strengthen the bottom and sides and strengthen teeth part, use persistent

Shovels

Thickening push , can be adjusted

Steel tracks

Big grounding area and high stability

Excavator Services

SD13D Crawler Excavator Specifications

Overall size		Machine parameters
Min. Radius of Rear Gyration	1650mm	Machine Weight	5880Kg
Min Ground Clearance	350mm	Bucket Capacity	0.28m³
Platform width	1810mm	Rated Power	37KW
Engine hood height	1750mm	Cylinders	4
Platform Height Above Ground	830mm	Hydraulic Pressure	24MPa
Transport Length	5850mm	Max Grade	30°
Arm Length	1600mm	Ground Pressuree	35kpa
Boom Length	3000mm	Max Travel Speed	2.5-4.5Km/h
Bucket Width	670mm	Max Traction	38KN
Working range		Platform rotation speed	8-10rmp
Max. Digging Height	5760mm	Max Bucket Digging Force	37.7KN
Max. Dumping Height	4030mm	Max Arm Digging Force	28.4KN
Max. Digging Depth	3820mm	Machine configure
Max Digging Radius	6150mm	Model No	SD65E
Min Radius of Rotation	2100mm	Engine Model	Yanmar4TNV494
Max. Lifting Height of Bulldozer	350mm	Pump	Imported MZFB327
Max. Sinking Depth of Bulldozer	450mm	Valve	Parker-Korea
As the technology is constantly updated, materials and technical specifications are subject to change without notice.		Spray method	Direct injection
		Cylinders	4
		Motors	Imported Eaton
