0.8 ton SD10D Mini Crawler Excavator

Categories	Crawler Excavator
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	SD10D
Hydraulic Pump Brand	shimadu
After Warranty Service	Video technical support, Online support
Track Type	Rubber Track
Engine Power	7.6KW
Engine Brand	KOOP Euro V
FOB port	Qingdao China
Terms of Payment	L/C, T/T
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

SD10D CE CERTIFIED EARTH MOVING MACHINERY EURO V STANDARD CHINA MINI EXCAVATOR 0.8 TON MINI EXCAVATORS

The smallest hydraulic excavators (with seats for operators) indeed are small. They are narrow and short enough to be driven through doorways. They’re powered by engines of 10 to 15 hp and weigh just a ton, more or less. By every definition, these are compact machines.

SD10D is the smallest excavator, but it is the real excavator, not kids toy. It is made by the standard of excavator could work with hammer, auger, rake, grab etc, It can do all the garden works for you.I

The smallest hydraulic excavators (with seats for operators) indeed are small. They are narrow and short enough to be driven through doorways. They’re powered by engines of 10 to 15 hp and weigh just a ton, more or less. By every definition, these are compact machines. While their market share is compact, too, it is growing larger.

SD10D Outline Dimension

SD10D Main Features

1.Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating range.

2.Multipurpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of

3.Fruit-land Nurseries concrete pavementcrushing,sand-gravel material mixing, construction work in the narrow place etc...

4. It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow investment,high return.

SD10D Excavator Main Parts

Excavator Services

SD13D Crawler Excavator Specifications

SD10D MINI EXCAVATOR MAIN PARAMETERS
Overall size
MODEL NO	SD10DN
Platform Ground Clearance	370MM
Arm Length	1050MM
Min Ground Clearance	150MM
Bucket Width	300MM
Machine parameters
Weight	760KG
Bucket Capacity	0.02M3
Rated Power	7.6KW
Rated Rotation Speed	3000R/M
Max. Grade	30°
Max. Ground Pressure	18.9kn
Max Walking Speed	1.8km/h
Max. Traction	9.2kn
Platform Rotation Speed	9-12RPM
Working range
Max. Digging Height	2350MM
Max. Dumping Height	1450MM
Max. Digging Depth	1300MM
Max Digging Radius	2280MM
Min. Radius of Gyration	1100MM
Max. Ground Clearance of Bulldozer	180MM
Max. Support Depth of Bulldozer	200MM
Machine configure
Model No:	SD10D
Engine Model	KP192
Main Pump	GEAR PUMP
Rotation/Walking Motor	SANYO
Boom Swing	OPTIONAL
Overall Size	24807201375MM

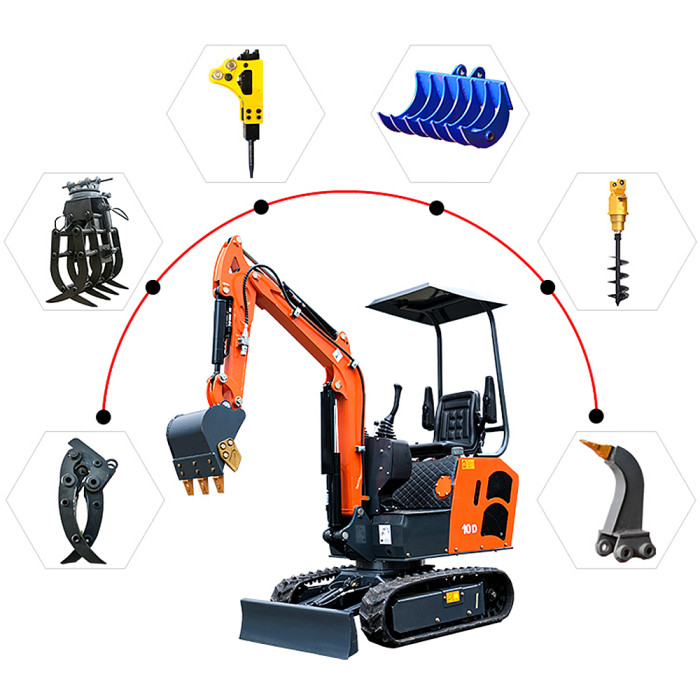

Excavator Attachments Options:

Job Sites Performance

Buyers Feedback:

Other Excavators

Testing Video:
